AF77-1032BLK - Universal Fabricated Power Steering Tank

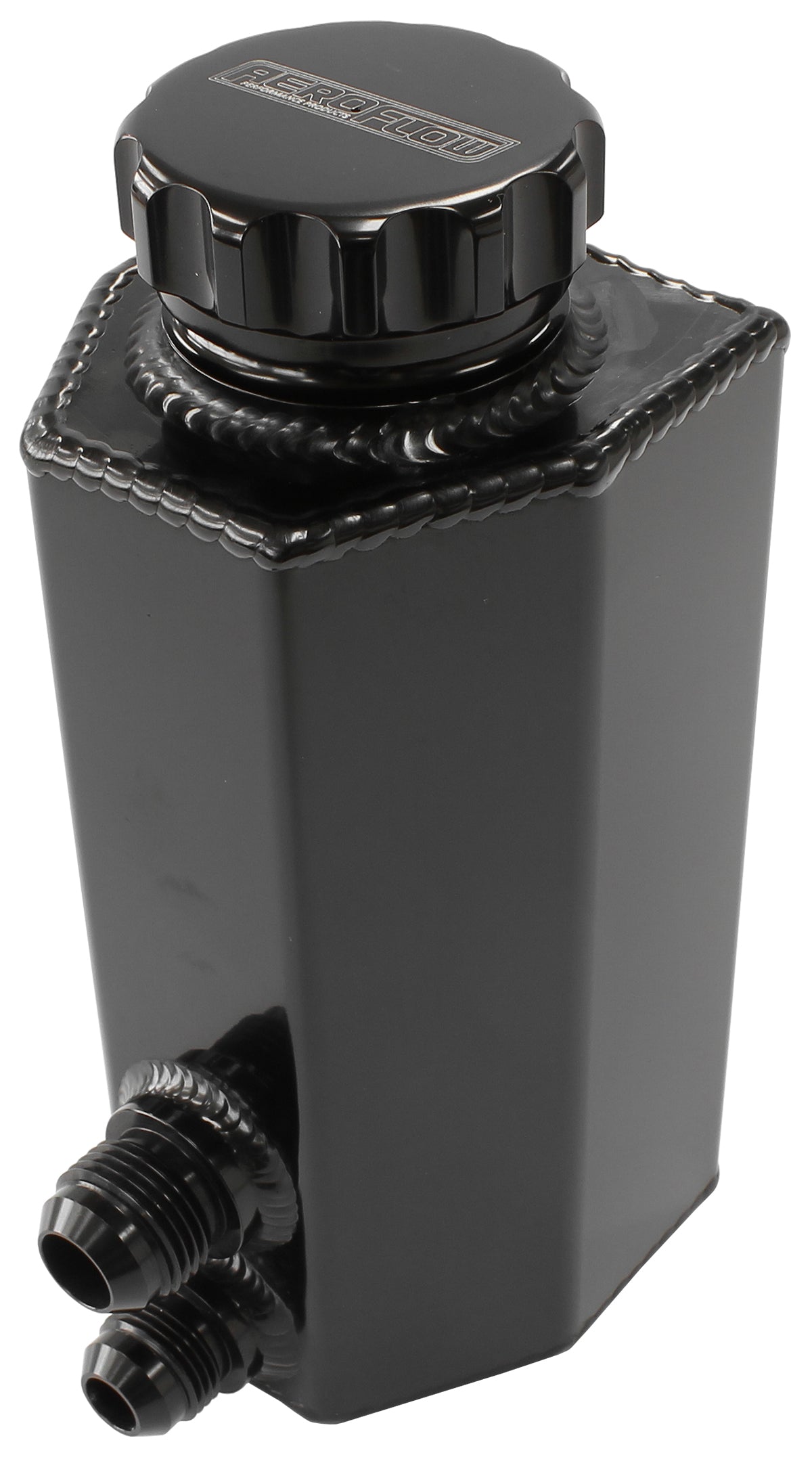

Universal Fabricated Power Steering Tank - Black
With -8AN & -10AN Ports, 660ml (22.5oz)

Aeroflow universal fabricated power steering remote reservoirs are ideal for applications that can not fit a pump mounted reservoir in conversion cars or you wish to dress up your engine bay with an aftermarket power steering system. They are manufactured from 5051 aluminium with internal baffles which act like an air separator to keep the fluid from getting foamy or overflowing. Included on the return side we have incorporated a restrictor to prevent aeration within the tank as well.

Each tank features a 38mm (1-1/2") billet cap and can hold 660ml (22.5oz) of fluid. M8 mounting bungs are on each tank for mounting with a -8AN male return to the power steering rack on the bottom and a -10AN male feed fitting for the power steering pump.

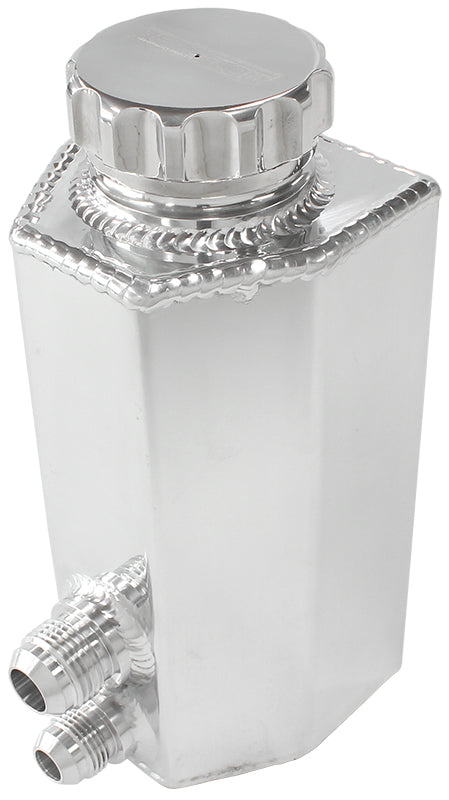

These professionally constructed tanks come either highly polished or in a black anodised finish

Dimensions:
Tank Height: 190mm
Tank Width: 80mm
Tank Length: 75mm
Centre to Centre of Mounting Bungs: 60.85mm
Centre to Centre of AN Fittings: 31.60mm

Barb Sizes 9.52mm (3/8") and 19mm (3/4")
M8 x 1.25mm Mounting Bungs
