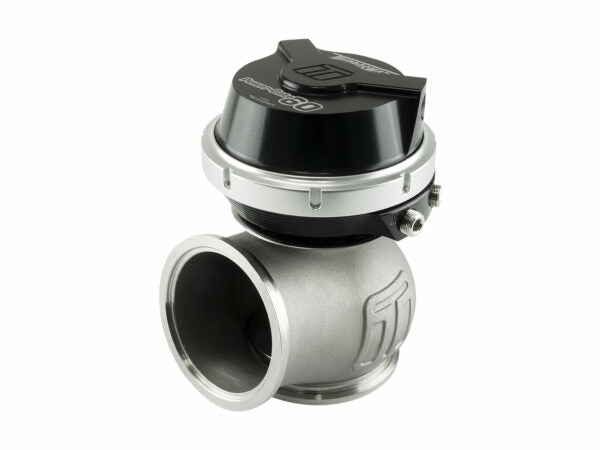

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective 60mm external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing ‘Poppet Style’ Wastegate in the World. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

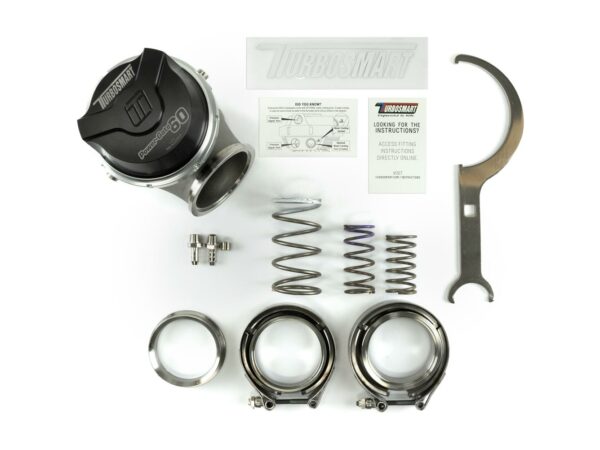

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features Class Leading, Thermal Performance Class Leading, CFD & Bench Validated Flow Performance Class Leading Fatigue Resistance Optional Liquid Actuator Cooling Optional Position Sensor Available Separately Rotatable / Clock-able Actuator Housing 60mm V-Band Fitment Nitronic 60 Valve Guide & High Temp 347 SS Body 17-7 PH Stainless Steel Springs Strap Type V-band clamps
